SPLIT LIMB ADAPTER
INSTRUCTIONS
Note: This
product has been discontinued
Click here to download or print a PDF version
First
adjust the Bowmaster limb adapters to the width of the limb.

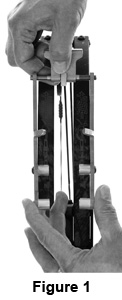

Hold one of the limb adapters up to the face of the limb. Turn
the adjuster wheel and adjust the adapter width slightly wider
than the limb. ( Figure 1)
Adjust the other limb adapter to the same width.
Lay the bow on a flat surface. Install the limb adapters
on the end of each limb by coming in at an angle to the edge of
the limb just behind the cam or wheel ( Figure 2)
and then rotate and slide them into position. (
Figure 3)
Letting the side brackets swing at an angle to each other may
make it easier to install the adapters.

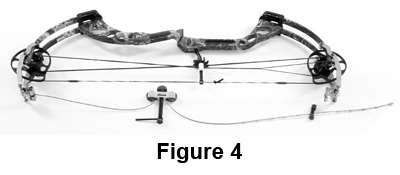

Lay the bow on a flat surface with the string
toward you. Lay your Bowmaster press alongside the bowstring.
( Figure 4)
Attach the non-adjustable end of the cable to one of the limb
adapters. Move the adjustable end of the cable into
position and attach it to the other limb adapter. You may
need to adjust jackscrew on the Bowmaster press so that one of
the adjustment stops is in the proper position. Turn the
jackscrew on the Bowmaster press so that most of the slack is
out of the cable. This is only to put a small amount of
presser on the limb adapters to hold them in place for final
adjustment. Do not start to compress the bow at this time.
Pick
the bow up and if needed adjust the limb adapters so that they

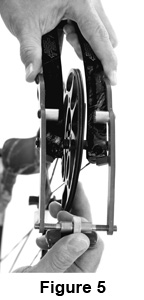

are square on the limbs. IMPORTANT
- Make the final width adjustment on the limb adapters so
that each of the side brackets is snug and parallel with the
side of the limb. ( Figure 5) If the width of
the limb adapters is adjusted too narrow, it will cause the free
end of the side brackets to flare apart and the side brackets
will not be parallel with the sides of the limbs.
CAUTION: Position the Bowmaster press at least 4" from the last
adjustment stop before compressing the bow, otherwise the stop
may be pulled into the Cable Roller resulting in damage to the
cable roller and cable.
Do not over press your bow. Only press the bow enough to
perform the needed repair. Do not remove the axles while
the bow is compressed.
WARNING:
The limbs of a compound bow are under extreme tension.
Use caution while working on the bow. Keep the
face of the limbs away from you at all times. Eye
protection must be worn. |
